Technical Specificaations

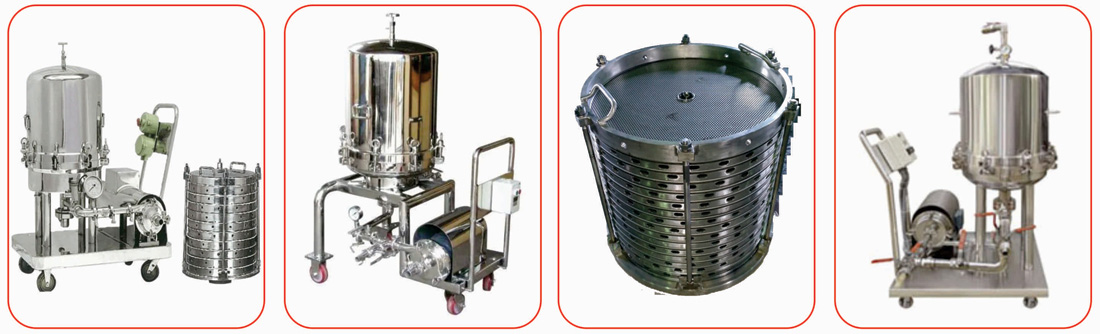

The filter comes with inlet, outlet, pressure guage, bypass, safety valve, sampler, centrifugal pump (with mechanical seal) & SS - TrolleyMax. working pressure: 5kg/cm2
Max. working temp.: upto 100 - 200 °C (depending on filter & sealing)
| Model | Plate Dia inches | No. of Plates | Filter Area m2 | Cake Holding cap. ltrs. | Output ltrs./hr. | Pump hp |
| DDS 806 | 8 | 6. | 0.20 | 4.9 | 600 | 1.0 |
| DDS 808 | 8 | 8 | 0.26 | 6.3 | 700 | 1.0 |
| DDS 1408 | 14 | 8 | 0.75 | 22 | 1500 | 2.0 |
| DDS 1410 | 14 | 10 | 0.92 | 27 | 1800 | 2.0 |
| DDS 1808 | 18 | 8 | 1.28 | 45 | 2800 | 3.0 |
| DDS 1812 | 18 | 12 | 1.85 | 76 | 3500 | 3.0 |
| DDS 1815 | 18 | 15 | 2.28 | 88 | 4000 | 3.0 |
| DDS 2412 | 24 | 12 | 3.43 | 104 | 7000 | 5.0 |
| DDS 2415 | 24 | 15 | 4.23 | 128 | 8000 | 5.0 |
| DDS 2424 | 24 | 24 | 6.60 | 200 | 12000 | 5.0 |
| DDS 3307 | 33 | 7 | 4 | 120 | 12000 | 5.0 |
| DDS 3310 | 33 | 10 | 5.5 | 165 | 15000 | 5.0 |
| DDS 3314 | 33 | 14 | 7.5 | 225 | 18000 | 5.0 |
