Technical Specificaations

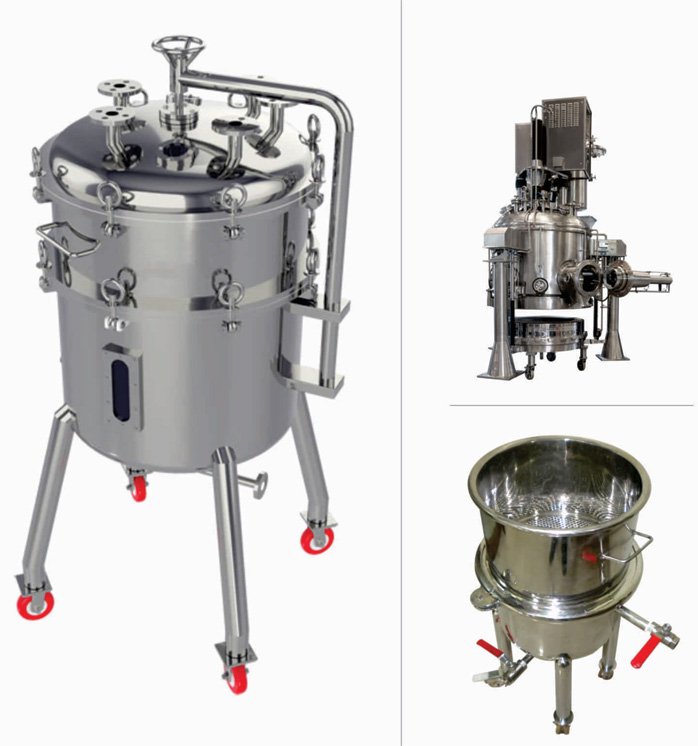

NUTSCHE FILTER are offered batch ltration technique that uses vacuum /pressure in a closed vessel is mostly used in chemical and pharmaceuticals industries. The system consists of closed vessels with variety of lter media. In this lter solid/liquid slurry is aided by pressurizing the vessels /applying thevacuum. Liquid is passed through the lter and solid is concentrated on ltermedia i.e. cake is retained on lter medium. Synthetic lter cloth, lter pad orthe metallic lter is mostly use as lter media.
This Iter is specially designed for solid liquid separation. We offer cleanable, non-bre / particle releasing Sintered SS316L lter discs as a option. This isa major advantage in applications requiring ltration in API ne chemical. Nutsche lters are designed to facilitate exible discharge.
| PART NO. |
"A" (IN MM) |
"B" (IN MM) |
"C" (IN MM) ID |
CONNECTION |
HOLD UP VOLUME IN LIT. |
BOX SIZE IN INCH (LxWxH) |
INLET
OUTLET |
PRESSURE
GAUGE |
VENT |
| F0001-300PBS |
200 |
545 |
300 |
1.5" |
1.5" |
1/4" |
1.5" |
1/4" |
18 |
31x24x24 |
| F0001-400PBS |
250 |
670 |
400 |
1.5" |
1.5" |
1/4" |
1.5" |
1/4" |
40 |
37x27x27 |
| F0001-500PBS |
250 |
680 |
500 |
2" |
1.5" |
1/2" |
1.5" |
1/2" |
64 |
38x29x29 |
| F0001-550PBS |
250 |
695 |
550 |
2" |
1.5" |
1/2" |
1.5" |
1/2" |
80 |
41x30x30 |
| F0001-600PBS |
250 |
705 |
600 |
2" |
1.5" |
1/2" |
1.5" |
1/2" |
95 |
42x33x33 |
| F0001-650PBS |
250 |
715 |
650 |
2" |
1.5" |
1/2" |
1.5" |
1/2" |
115 |
42x35x35 |
| F0001-800PBS |
300 |
800 |
800 |
2" |
1.5" |
1/2" |
1.5" |
1/2" |
215 |
46x40x40 |
| F0001-900PBS |
350 |
870 |
900 |
2" |
1.5" |
1/2" |
1.5" |
1/2" |
318 |
50x44x44 |
| F0001-1000PBS |
350 |
890 |
1000 |
2" |
1.5" |
1/2" |
1.5" |
1/2" |
408 |
51x48x48 |
